Richpen Airbrush Parts for Phoenix & Gemini Series

We stock a selection of replacement parts for the Richpen line of airbrushes.

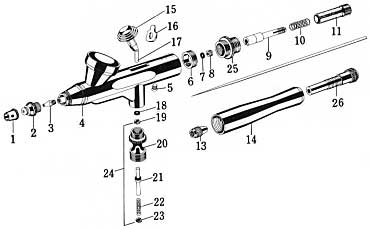

Below is the parts breakdown that applies to the Phoenix and Gemini series airbrushes. For sake of simplicity the airbrush shown is a Phoenix 212B.

Among models 212A, 212B, 213C, 312B, 313C almost all parts are interchangeable with the following exceptions: 213C and 313C have a different Nozzle Cap (2), Tip/Nozzle (3) and Needle (12) than the other models. Please specify for which model the parts are required.

Parts

1. Needle Cap Lenz Price $7.50 for 312B and 313C

2. Nozzle Cap Lenz Price $17.70 for 312B and 313C

3. Tip/Nozzle Lenz Price $30.00 for 312B and 313C

4. Body [not available]

5. Screw/Stop [not available]

6. Guide Screw [not available]

7. O-Ring Needle [not available]

8. Set Screw/O-Ring [not available]

9. Needle Support [not available]

10. Needle Spring [not available]

11. Spring Screw [not available]

12. Needle [not available]

13. Needle Locknut [not available]

14. Handle [not available]

15. Finger Lever/Trigger [not available]

16. Back Lever [not available]

17. Shift Pin [not available]

18. O-Ring/Shift Pin #17 [not available]

19. Valve Washer [not available]

20. Valve Body [not available]

21. Valve Plunger [not available]

22. Valve Spring [not available]

23. Valve Washer [not available]

24. Air Valve Assembly Lenz Price $20.10 for 212B (works for any)

25. Bush [not available]

26. Needle Adjuster [not available]

<312B, 313C Only> 1/20oz (1.5cc) Side Cup [not available]

<312B, 313C Only> 1/8oz (3.5cc) Side Cup [not available]

Please contact us for a stock check on parts as supply is currently limited.
There is a $10.00 minimum for parts orders.
